Laboratory-specific chillers

Taiheng brand laboratory chiller is a novel appearance, configuration luxury, control precision model, mainly used in the laboratory equipment of various scientific research institutions cooling. It can also be customized to customer requirements.

Product advantages
Technical parameters
Shape Diagram Size diagram

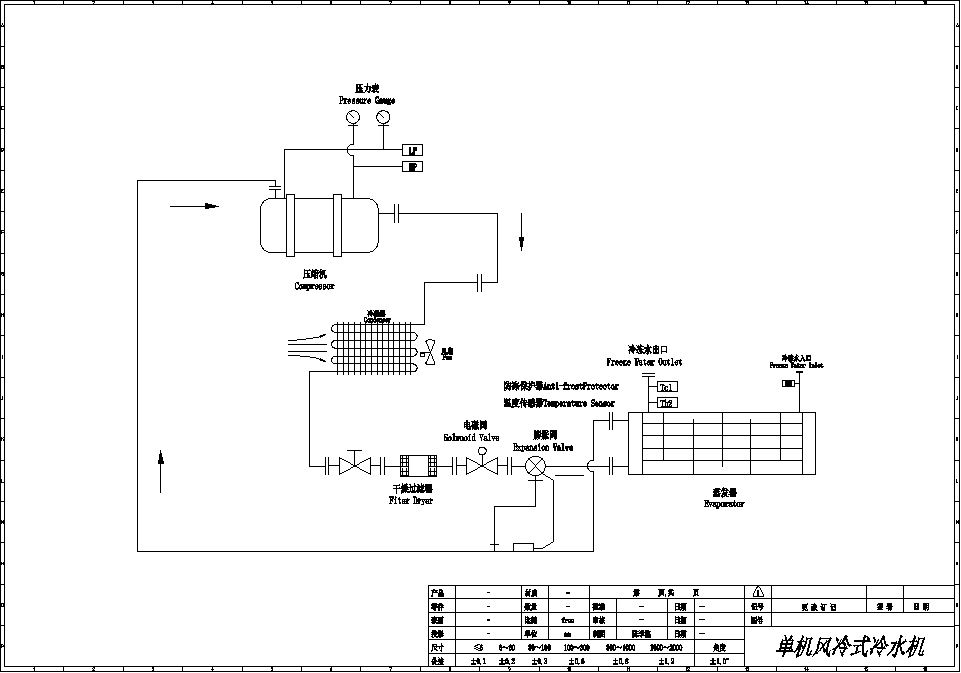

System flowchart

Unit characteristics:
1, Compressor: European and American original imported, operation noise is small, energy saving durable, long service life
2, heat exchanger: using clear water aluminum foil fin condenser, stainless steel plate type / disk tube type / Shell tube evaporator, heat transfer effect is good, energy saving 30 %
3, temperature controller: Adopt imported high-precision computer board, imported temperature control + Silicon controlled linkage control, water temperature control accuracy ± 0.1-0 .5 °C. Customers can first be equipped with PLC control, RS485 communication functions, so as to achieve automation management.
4, frozen waterway: using stainless steel pump + stainless steel tank + stainless steel pipe, effectively eliminate the impurity caused by erosion of the pipeline, to ensure the stable operation of the unit
5, complete safety protection measures: underphase, reverse phase, overload, high and low pressure, water flow protection, ultra-temperature protection, anti-freeze protection, etc..
6, Subject to the following specifications and requirements, our company may supply non-standard products upon request.

Model		THX-		01AJ	02AJ	03AJ	04AJ	05AJ	06AJ	08AJ	10AJ
Cooling capacity		Kw(50HZ)		2.68	6.2	8.5	11.2	14.5	17.2	22.4	29
Cooling capacity		Kcal/h		2305	5332	7310	9632	12470	14620	19264	24940
power		kw		1.1	1.87	2.86	3.77	4.68	5.54	7.1	9.5
current		A		5.0	9.1	5.8	7.54	9.36	11.1	14.2	18.88
Power Supply				1N-220V50Hz		3N-380V50Hz
Temp range、accuracy				5--35℃ ±0.1--0.5℃
Refrigerant model				R22/R410（Optional）/R407c（Optional）
Filter accuracy				50μm（Customer optional）
Compressor	power		kw	0.75	1.5	2.3	3.0	3.75	4.41	3.0*2	3.75*2
Condensing fan	power		kw	0.09	0.13	0.19	0.22	0.38	0.38	0.42	0.84
Condensing fan	air flow		m³/h	1000	2000	3000	4000	5000	6000	8000	10000
chilled water	water flow		m³/h	0.51	0.97	1.53	1.87	2.4	2.9	3.75	4.82
chilled water	joint		DN	20	20	25	25	25	25	32	40
Tank volume			L	20	35	45	55	78	98	140	180
Freezing pump	Power		kw	0.25	0.37	0.37	0.55	0.55	0.75	1.1	1.1
Freezing pump	lift		m	15	20	19	25	25	18	20	20
outline dimension	L		mm	570	900	1150	1150	1150	1300	1300	1350
	W		mm	420	500	560	560	560	720	770	770
	H		mm	715	1120	1160	1160	1200	1330	1330	1330
weight			kg	65	90	150	180	190	300	350	450
