-40C cryogenic freezer

Taiheng brand cryogenic freezer THXL-15DA has been effectively optimized by the research and development department for the system configuration, so that the equipment achieves better condition, higher energy efficiency, lower energy consumption. Widely used in the medical chemical industry reactor for cooling, precision thermostatic control, such as glass reactor, metal reactor, bioreactorand.

Product advantages
Technical parameters
Shape Diagram Size diagram

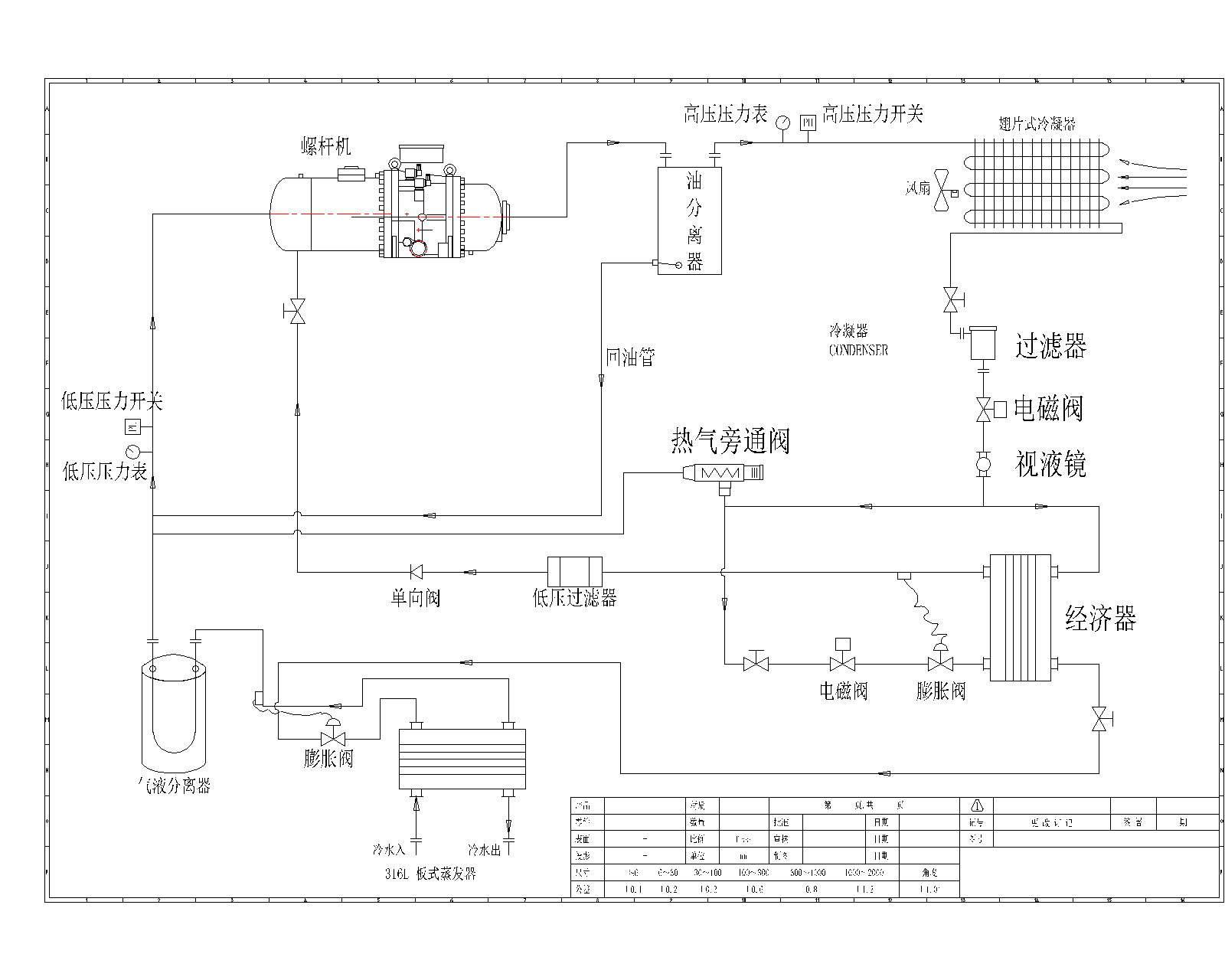

System flowchart

Unit characteristics:
1, non-standard customized freezer minimum temperature can reach -120 °C, maximum temperature up to 200°C, control accuracy±0.1-0 .5.
2, can be customized according to customer needs dual temperature dual system integrated constant temperature model, suitable for various industry conditions.
3, compressors: use piston type import compressors, the use of stand-alone / stand-alone double-stage / double-stage duplication/three-stage overlapping compression.
4, controller: using Siemens PLC programmable touch controller + Silicon controlled linkage control, with centralized monitoring and RS485 communication functions, so that the unit is always in the most secure and stable state
5, frozen medium: ethylene glycol / diethylbenzene / Silicon oil.
6, refrigerant: using R22/R23/R404 / R507/R50, etc..
7, All equipment configurations are available upon request.
